Héliciel is a "participatory" software, developed in collaboration with users: Send your suggestions for improvements to _contact@heliciel.com_ Your ideas and suggestions for improvement generate updates and regular free download here. The community of users Héliciel, control its evolution.To download the latest version HELICIEL:

Version 11.0.2.2 of 03/02 2025:

What's new in this new version?:

• Added a "calck" mode on the profile drawing interface, to allow tracing a shape by transparency
• Improved saving and loading of reverse engineering projects

What's new in previous versions?

Version 11.0.1.0 of january 8 2025:

• correction bug at upstream axial flow at zero upstream speed
• correction bug at average axial flow in out design
• correction blade frame bug at Nb elements change
• correction bug zoom.
• correction invalid thickness
• timer cancel updates search.

Version 11.0.0.3 of january 5 2024

• VirtualBox administration.

Version 11.0.0.2 of december 19 2023:

• 3D interface for model selections, selection of drone propeller models, transition from project formats to compressed bin.

Version 10.0.1.1 of december 13 2023:

• Fixed a translation error for English versions. ctrl admin europe.

Version 10.0.1.0 of december 12, 2023:

2 new tools about profiles database creation:

• Tools for creating profile families, by progressive transformation of one profile to another profile. Very useful for creating a new database with the evolution of the thickness of a series of profiles from the base to the tip of the blade...

• Polar editor tool, to edit and modify an existing profile polar.

Version 10.0.09 of november 30, 2023

• the possibility of creating profiles with thick trailing edges has been added (until now, importing and editing profiles automatically corrected thick trailing edges to sharp trailing edges). For certain cases of very thick profiles, It is known (following xfoil user manual) that Xfoil converges better if the trailing edge is thick, rather than sharp.
• In the profile tracing window, it is possible to draw the penultimate points of the intrados and extrados up to the position x=1 (0.999) and start the calculation...
• When importing .dat profile files, automatic correction of sharp trailing edges is disabled.

Version 10.0.08 of november 30, 2023

• Fixed a bug that could appear when launching polar calculations on certain machines (missing libiomp5md.dll)

Version 10.0.07 of november 29, 2023

• Integration of the Multirotors interface*, for the design of counter-rotating propellers, and projects for vertical take-off machines, such as VTOLs, taxi drones or quadricopter, octocopter drones, etc. used for photography, transport of packages, measurements geographic, archeology and other applications using multirotors:

*versions EU zone only.

Version 10.0.03 of november 11, 2023:

• Add specific dll for customXfoil

Version 10.0.01 of september 21, 2023:

• reconfiguration of the "documents" folder accepting specific location parameters, and specific network permissions

Version 9.5.03 of september 21, 2023:

• Heliciel 3d graphics are now running Directx11!

Version 9.5.01 of september 21, 2023:

• 64 bits version ! there is no more machines using 32 bits, it was time to go to 64bits performances, for the new heliciel versions!

 Version 9.4.1 of september 14, 2023:

• What's new in this new version?: This update mainly concerns the improvement of polar calculations and profile drawings.
• Revision of the profile tracing window, addition of attack edge zoom and correction tools.
• Profile checks and corrections before polar calculation.
• Profile checks and corrections before boundary layer
• calculation Compilation of a "customized" version of Xfoil for parallelization and acceleration of polar calculations.
• Fixed bug memorizing boundary layer calculations.
• 4-digit naca editor with number of denser leading edge points.

Version 9.3.2 of June 08, 2023:

What's new in this new version?:

New export functions in STL format for 3D printers:

• Added of 3D export of the blades in .STL format
• Added 3D Export Propeller complete + hub in .STL format

version 9.2.6.7 of October 26, 2022

• removal of a bug that appeared on Windows 10 and 11, under certain graphic settings, which caused the application to close when certain blade geometry modifications were made.

Version 9.2.6.3 du january 7 2022:

• Add clark database (menu "database management / use the functions add data from another database ..." in interactive database

• Precision of the types of Cp and Ct in the analysis section: some literatures use a coefficient Cp and Ct of type "rotor" whose definition diverges from the definition of type "Propeller". Heliciel uses the definition Cp and Ct propeller. But to avoid errors Heliciel now specifies the type of Coefficient to limit errors in interpretation of these coefficients which lead to confusion if the sources are mixed. To learn more about these definitions of Cp and Ct, see propeller figure of merite FOM Cp and Ct helices

Version 9.2.6.1 du 18 mai 2021:

update in ssl

Version 9.2.5.8 du 18 mai 2020:

Addition of data on volumes and mass of the blades in the info pane, at the level of the "geometry" properties of the elements and the propeller

Version 9.2.57 du 02 fevrier 2020:

• Reynolds display error corrected in the calculation note appearing in the information message after the wing calculations.

Version 9.2.54 du 17 septembre 2019:

• the tangential flow insert parameter could return a zero value error if it was removed without being reset, this has been fixed.

Version 9.2.54 du 17 septembre 2019:

• multiple analysis of the wings and foils no longer displayed the useful powers of the wing (Speed ​​* drag). corrected display.

Version 9.2.54 du 17 septembre 2019:

Modification of the writing rule in the torque curve comparator of the multiple analysis, correcting a windows write authorization bug that could block the function for comparing motor / propeller torque curves (the temporary writing folder has was transferred to "my heliciel documents" to no longer interfere with user rights ...)

Version 9.2.53 du 2 fevrier 2019:

• Adjustment of IGS parameters to increase compatibility with some CAD: Some CAD (Autodesk Fusion 360, FreeCAD ..) could not open the entities of B surface splines IGS BSPLINE 128. This problem was solved by a user (Mr Korjenevsky) who discovered that some CAD did not correctly describe the IGS 128 entity parameter according to the IGES standard. This problem has therefore been solved by changing this parameter to make it acceptable to all CADs. Many thanks to Mr Korjenevsky for solving this problem!

Version 9.2.51 of december, 2017:

• Export function format igs scale 10: the very small propellers (diameters less than 20 mm, have igs definition which can be difficult to open in solidworks or other CAD) A scale export function 10 makes it possible to solve these inaccuracies of format, the model is exported 10 times larger to avoid any loss of definitions, then just scale 0.1 in CAD to restore normal size.

Version 9.2.50 of September 20, 2017:

• Fixed a block in the selection of the advancement constant in the multiple analysis when using the retro-design mode.

Version 9.2.49 of March 08, 2017:

• additional possibility of density modification to simulate a variation of altitude and pressure during performance test. (fluid tab, change density according to altitude or pressure)
• Management of the resizing of the database window.

version 9.2.48 of 12 December 2016:

• correction of a blocking "radius <1mm" in the fans wizzard

version 9.2.47 of November 10, 2016:

• support for new processors without version numbers

version 9.2.45 of October 03, 2016:

• fix sliders display.
• Controle inputs geometry of strings
• management errors of precision step dimmers

version 9.2.44 of 17 November 2015:

• redesign of the fluid editor.
• display of the installation phase of directX during the installation of the software.
• Wizzard Window Re-Sizing Correction Fans

version 9.2.44 17 november 2015 :

• new fluid selector.
• setup directx mangment visible.
• Wizzard blowers and pump

version 9.2.43 22 september 2015 :

• changing size of displayable orders for turbines, powers of the order of milli watt are henceforth displayable.

version 9.2.42 29 july 2015 :

• Adding to the pressure bars in the area parametrage cavitation test depth
• Removing a default display of the blades end elements with the option of correcting curvatures

version 9.2.41 du 16 july 2015 :

• lsupport tool "wizzard" Fan was extended to the design of axial pumps, it is now even easier to preform an axial propeller pump or fan depending on the flow and pressure designated in the specifications!

version 9.2.40 du 26 june 2015 :

• Translation conversion tool Units phisiques (edit menu) to the display mode "English" (display / menu language), this tool was displayed in french even for change language

9.2.1.7 version of the june 12, 2013

Performance improved to better reflect the induced velocities, and blade tip vortices particles. Modification of default templates and wind turbines. Adding wind map U.S. and Canada

9.2.1.4 version of the May 7, 20139.2.1.4 version of the May 7, 2013

Fixed a defect detection colision blade.

9.2.1.3 version of the May 31, 2013

Fixed default display grid data entry timing in retro design + correct default multipoint analysis for the wings graphics display

Version 9.2.1.0

Multilingual Version English / French: Choose your language from the View / Save menu.

Version 9.2.0.7

Optimizing 3D display and compatibility Windows 8 Version 9.2.0.4

Correction (2) without user privileges under environmental X64 Version 9.2.0.2

Fixed an error privileges administrators

9.2.0.1 release. 9.2.0.1 version of November 21, 2012

A change of strategy sessions to execute permetmaintenant Heliciel in "Guest User without admin rights" mode. This update was éffectuée to meet the needs of network deployments such schools ...

9.2.0.0 version of October 11, 2012

(Included in the latest version) This update URGENT! Control and Fixes database performance profiles that include defects in offsets impacts. Some corrupted data décallent point Finnesse max up to 3 degrees! At launch, the update control your database and proposes two correction solutions: SOLUTION 1: Proposed by default, you can apply the new database naca_heliciel3 data, which is a corrected version provided with the update. (This solution is very fast and highly recommended, a backup of the last database is created)

SOLUTION 2: You can keep your last database used, and run a correction procedure via the menu of the interactive data base: data bases Files Management / Automatically correct basis. This procedure looks for erroneous profiles and recalculates all polar erroneous profiles. This second option is useful only if you have calculated the polar for a series of profiles and created a database of personal data that you want to keep

A message indicating the use of wrong profile appears in the list of messages in the main interface. If you have any questions on the subject, do not hesitate to contact directly 0450106890.

9.0.0.57 version of August 23, 2012

Minor Adjustments of parameters (option to download in the absence of directx, timely file creations XFOIL increased) What's new in previous versions? (Included in the latest version)

9.0.0.56 version of April 21, 2012

Automatic transfer of old projects to the new working folder for users of older versions.

9.0.0.55 version of April 20, 2012

Heliciel can now be used on one computer for multiple users, even if no users do not have administrator privileges, you can access all the functions of the software. A "heliciel Documents" folder stores data and settings of the user without interfering with others. This file "heliciel Documents" is placed in the "My Documents" folder of the user, it can be copied and loaded onto another machine to continue the current project even if it has a database performance modifiée.Cette new architecture folders allows a flexibility particularly suitable for school-type institutions, where many mobile users use computers in a timely manner.

9.0.0.53 version of April 19, 2012

Changes registry entries to enable the visibility of licenses for all users invited (more needs to enter the key in the first run the software as a new user). Attention users do not haves privileges "administrator" have limited functions and can not create profiles or modify the database.

9.0.0.42 version of April 11, 2012

Correction of the available columns of the table entry table calibrations retro-fashion design (modeling of existing propellers, identified by clamping and application of profile shapes).

9.0.0.41 version of February 23, 2012

Resolution of display problems in some older 3D model configurations of Windows XP

9.0.0.38 version of the February 9, 2012

Fixed a problem of authorization in writing windows program file folders, strategies security windows defender and other antivirus can generate problems of launching external programs (such as XFoil) and writing .... This was resolved by declaring héliciel necessitating program as administrator permissions during its execution .... Authorization points as decimal separators

version 9.0.0.33 du 16 Novembre 2011

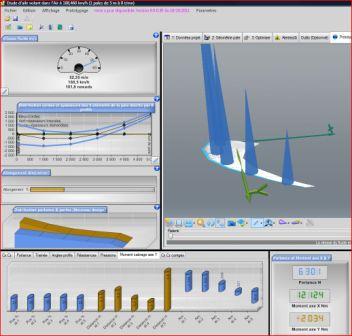

To learn more about the "moment" of pitching and position generator

9.0.0.29 version of October 16, 2011

A Xfoil blocking could sometimes occur under certain configurations of Windows XP, when we calculate the performance of a new profile that you want to register in the database, this has been resolved. (Couik!, no pity for the bugs!)

9.0.0.26 version of October 14, 2011

The curvature of the generatrix of the blade can now be in the opposite rotation direction.

Improved auto panneling before launching a procedure for calculating the performance of profiles in the interactive database.

9.0.0.24 version of October 12, 2011

It is now possible to display the pressure on the surfaces of the blades in the 3D model. A wide color matching / pressures can clearly see the pressure zones. This feature is particularly useful for the optimization of propellers or foils subject to the constraints of cavitation:

•
• One option for creating polar "Low Reynolds" has been added in the interactive data base. This function increments the Reynolds 10000 to 10000 in the low Reynolds, and a parameter optimization calculation was conducted Xfoil. The computation time was reduced by polar.
• Few changes in the presentation of some polar graph were made.

• 9.0.0.21 version of September 30, 2011
  • A results message for the wings were added to the list of message, some changes in the presentation of values ​​in the force diagram and viewing the downwash at the particles in the interface of the 3D model. The profile schema that appears for each element has been modified at the visualization of the downwash.
  • The ability to modify the parameters Xfoil added in "Settings Xfoil" tab at the interactive data base.Ceci helps control the parameters of the function that is executed when panneling calculations Xfoil. The panneling is to decompose the profile panel which is just manage the distribution. The convergence of calculations Xfoil is strongly influenced by the panneling. The panneling function was also added al interface tracking profile as an additional tool for editing profiles.
  • A Reynolds 50 000 was added as a second pole at the calculation procedure of polar patterns. The list is now calculated polar 10000, 50000, 100000, 200000, 300000 ..... 1000000, 3000000, 5000000.
  • The edition of the boundary layer has been improved, the calculations are now stored in the database each time that an edition of the boundary layer is demandée.Ceci avoids to restart Xfoil at each calculation, saving time is therefore.
  • The calculation of polar for a given profile was accelerated at the registration procedure points calculated (time savings is substantial for the database with many profiles)

• 1 version 9.0.0.20 September2011
  • the update's available now display automatically in the software opening: During this operation no information is sent from your computer. Heliciel just trying to connect to internet and will read the latest available version of heliciel.com, this function is deactivated on if you do not want to update.
  • The edition of the boundary layer has been corrected to better manage cases of non convergence calculations Xfoil.
  • The parametrage radius of the blade root has been changed to allow better accuracy, this parameter is given in% of the radius at the blade tip by a cursor, the cursor increment was reduced 0.5%
  • few mods at the material editor ...

• 9.0.0.18 version of August 29, 2011

Improved editing 3D boundary layer model and data base: Xfoil settings have been modified to improve convergence so the quality of the results of calculation of the boundary layer. The visualization of the boundary layer is used to control the interaction between the blades. If the boundary layer of a blade makes contact with the following blade, it is estimated that there are between the blades disturbance

• 9.0.0.17 version of August 26, 2011

An edition of the boundary layer is now possible from the 3D model and data base.

A retro design defect has been corrected (the selection button profile law profile should not be accessible in retro fashion design, so it was soon on when the retro design mode is enabled)

• 9.0.0.15 version of August 25, 2011

A bug on the reverse engineering has been reported to me by a user (appeared in version "9.0.0.13 of 20 August 2011"), to this course was corrected urgently. Thank you for your vigilance and your constructive criticism, do not hesitate to contact me any bugs or problems to: _contact@heliciel.com_.

• 9.0.0.13 version of August 20, 2011

The display of 3D particle model has been enhanced to better represent the tangential induction and eddy losses at the blade tip of a propeller pitch.

Messages of warning systematic safety of people and the accuracy of the results are theoretical and ideals have been added.

• 9.0.0.12 version of August 16, 2011

When a saved project is opened, heliciel checks if the database contains well implemented data stored for the project profiles. If project profiles are not in the database, Heliciel applied default profiles of the database in court and reported by a message. Now when the database does not contain the stored profile to project an invitation to load a database containing the profiles of the project.

• 9.0.0.11 version of August 12, 2011

In the multiple analysis (edition performance propellers) it is now possible to edit the curves of maximum depression detected on the blades to control the cavitation. More

• 9.0.0.10 version of August 10, 2011

Improved parametrage thicknesses to load saved profiles law projects defined by the thickness.

A more accurate diagnosis of cavitation retailer 3 levels of cavitation cavitation drag (low gravity in terms of performance), cavitation pocket concentrated (affect the performance but still acceptable), total cavitation (the entire surface of the element is cavitation s performance 'collapse and results are no longer usable)

Updating the display centers lift in the following selected Reynolds interactive data base.

• 9.0.0.08 version of the August 8, 2011

In the creation interface performance curves based on multiple operating points, it is now possible to enter curves torque motors or generators to facilitate reading of the operating point of the electric motors or generators.

Displays of standard views have been added to the 3D modeling engine to improve ergonomics.

Multiple instances of Heliciel beings can now run concurrently.

• 9.0.0.07 version of July 31, 2011

Editing curves Pressure coefficients around profiles in the interactive data base.

The steering Xfoil has been improved to increase the convergence and speed of creating new profiles to be stored in the database

• 9.0.0.04 version of July 18, 2011

recording projects in retro-design mode is now possible.

Project files with errors prevented the opening héliciel this problem is corrected.

the interface tracing patterns in the interactive data base was improved by functions of symmetries and editing profiles, recording drawings of profiles is now possible to format. DAT

•
• ......... Previous versions are included ......
